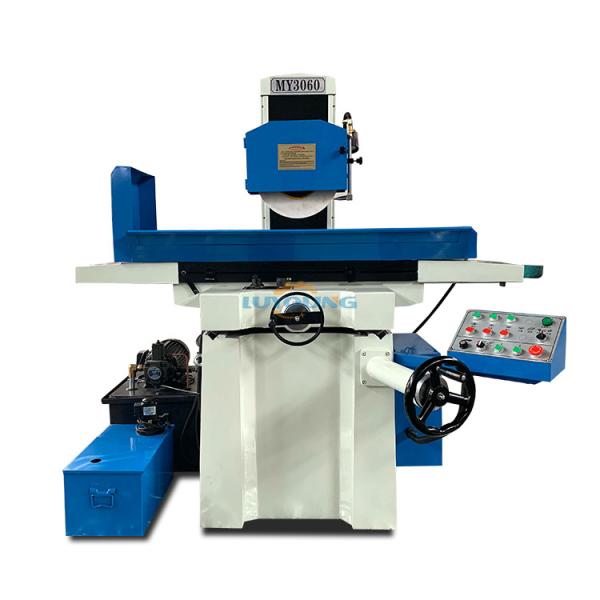

High Performance Surface Grinding Machine MY3060 Grinder

Brand Name : Luyoung

Model Number : MY3060

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD6000-8000

Payment Terms : L/C, T/T

Supply Ability : 100sets

Delivery Time : 45 working days

Packaging Details : non-fumigation wooden box

grinding workpiece (length × width × height) : 700 × 320 × 300

movement of the workbench : 750

lateral movement of the workbench : 300

Workbench slide : Double V-track

Contact Now

MY3060 series

1, The machine tool has reasonable structure, good rigidity, beautiful appearance and easy operation.

2, The machine tool can grind various flat surfaces and complex formed surfaces. The worktable is hydraulically driven longitudinally and electrically controlled stepping transmission is used front and back.

  • The main shaft adopts high-precision grouped rolling bearings, which are assembled in a greenhouse after strict side measurement selection and pre-loading, and are equipped with a completely waterproof labyrinth design to ensure the service life of the bearings and the surface roughness of the grinding.
  • The double V guide rail is used horizontally for greater stability, and special resin Teflon sliding sheets are affixed to the surfaces of the front, rear, left and right slides.
  • The column guide rail adopts large span moment guide rail with good rigidity.

Technical Specifications unit MY3060
Maximum size of grinding workpiece (length × width × height) mm 700 × 320 × 300
Maximum longitudinal movement of the workbench mm 750
Maximum lateral movement of the workbench mm 300
Maximum distance from work table to spindle center mm 550
Workbench slide Double V-track
Maximum load of workbench Kg 200
Workbench surface size (length × width) mm 6 0 0*300
Workbench T-slot mm×n 14×1
Workbench speed m/min 3-20
Front and rear hand wheel feed mm 0.02/grid 2.5/circle
Upper and lower hand wheel feed amount mm 0.0 1 /grid 2.0/circle
Grinding wheel size (outer diameter × width × inner diameter) mm 3 00 × 30 × 127
Spindle speed 50Hz rpm 1450
spindle motor Kw 3
Hydraulic motor Kw 1.5
Work pressure Mpa 4
Maximum flow L/min 20
Fuel tank capacity L 80
Cooling pump w 40
Parallelism of the machined surface to the base surface mm 300:0.0 08
surface roughness μm Ra0.32
Machine tool dimensions (length × width × height) mm 1960×1 65 0×1850
Gross weight, net weight T 1.6 , 1.5​
